Cross Bars for Roof Rail

Premium Carpet Mat Set:

Connectivity Kit

Door Sill Protectors

Vehicle Fueling (4 Gal.)

Frameless Homelink Rearview Mirror

Blackout Package:

Mud Guards

Owner's Portfolio

Body Side Molding

XLE Convenience Package - Height-Adjustable Power Liftgate & Power Tilt/Slide Moonroof

50 State Emissions

• Vehicle
• EPA Classification: Small SUV 2WD
• Mileage
• Fuel Economy Est-Combined (MPG): 30
• EPA Fuel Economy Est - City (MPG): 27
• EPA Fuel Economy Est - Hwy (MPG): 35
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 550
• Weight Information
• Base Curb Weight (lbs): 3405
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 1500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 150
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 150
• Maximum Trailering Capacity (lbs): 1500
• Suspension
• Suspension Type - Front: Strut
• Suspension Type - Rear: Multi-Link
• Suspension Type - Front (Cont.): Strut
• Suspension Type - Rear (Cont.): Multi-Link
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12
• Rear Brake Rotor Diam x Thickness (in): 11.1
• Tires
• Front Tire Size: P225/65HR17
• Rear Tire Size: P225/65HR17
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 17 X 7
• Rear Wheel Size (in): 17 X 7
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 36.1
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 14.5
• Exterior Dimensions
• Wheelbase (in): 105.9
• Length, Overall (in): 180.9
• Width, Max w/o mirrors (in): 73
• Height, Overall (in): 67
• Track Width, Front (in): 63
• Track Width, Rear (in): 63.7
• Min Ground Clearance (in): 8.4
• Cargo Area Dimensions
• Cargo Volume to Seat 1 (ft³): 69.8
• Cargo Volume to Seat 2 (ft³): 37.6
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 98.9
• Front Head Room (in): 37.7
• Front Head Room (in): 39.5
• Front Leg Room (in): 41
• Front Shoulder Room (in): 57.8
• Front Hip Room (in): 54.3
• Second Head Room (in): 37.7
• Second Head Room (in): 39.5
• Second Leg Room (in): 37.8
• Second Shoulder Room (in): 56.4
• Second Hip Room (in): 47.7
• Summary

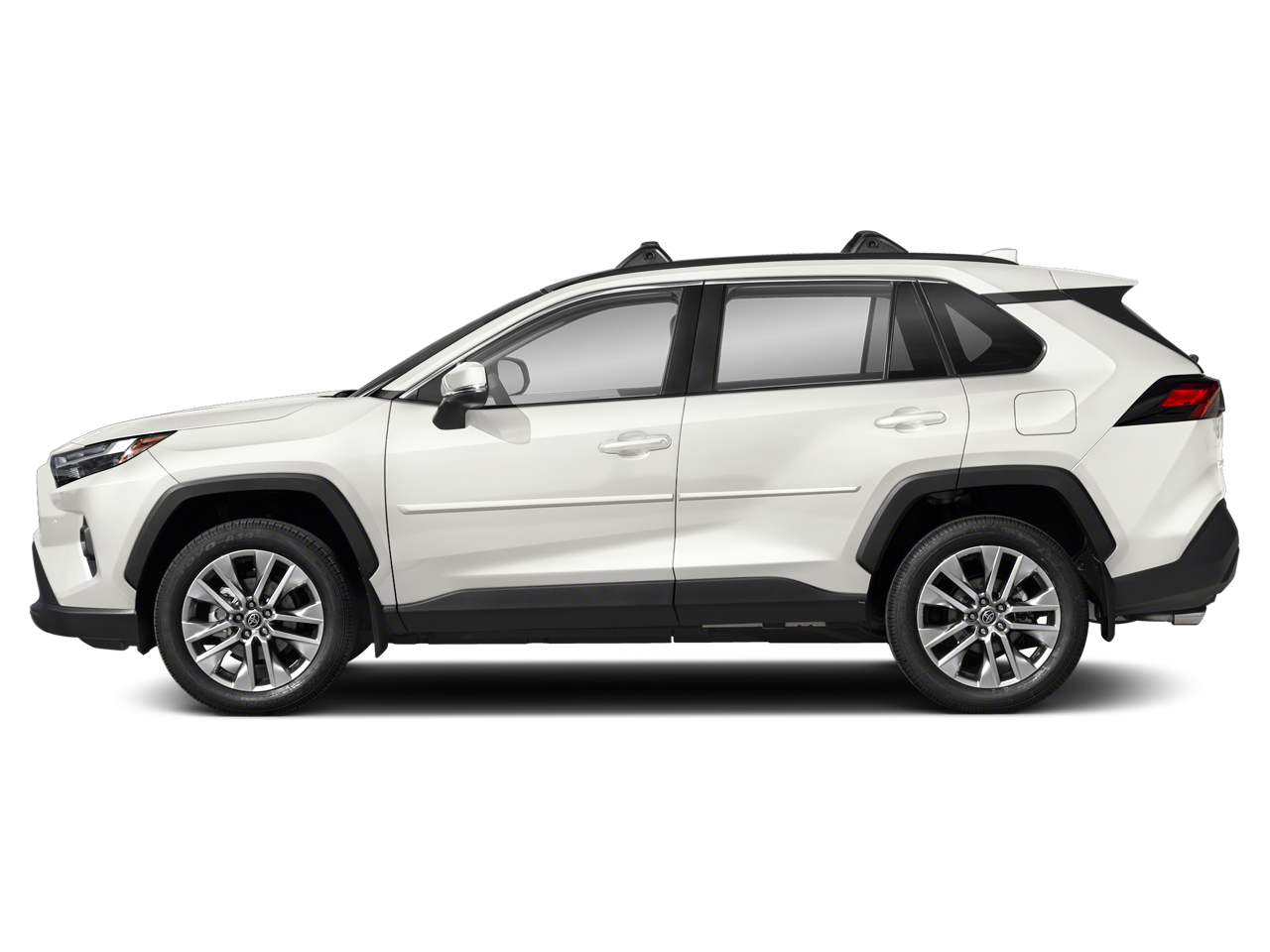

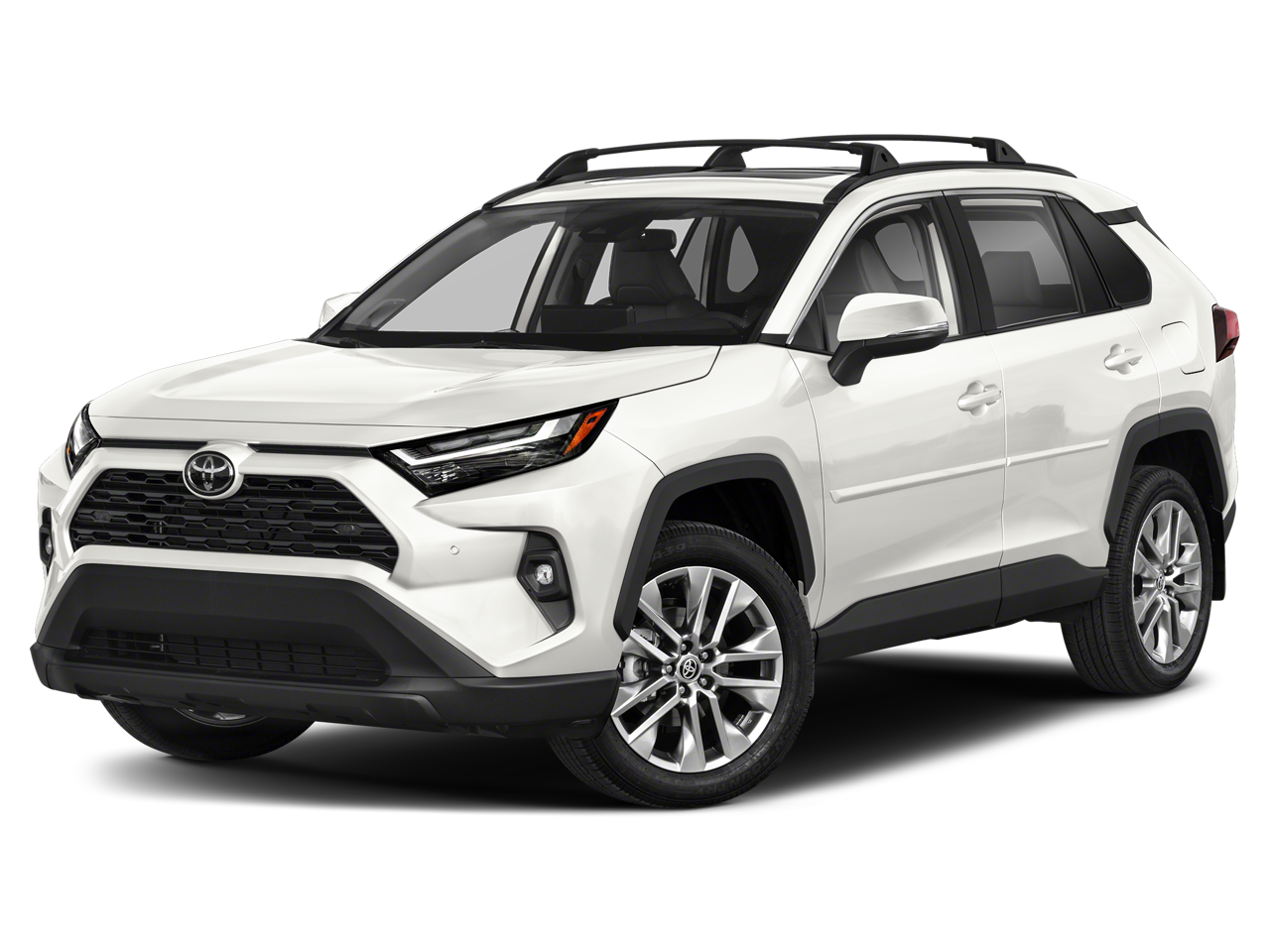

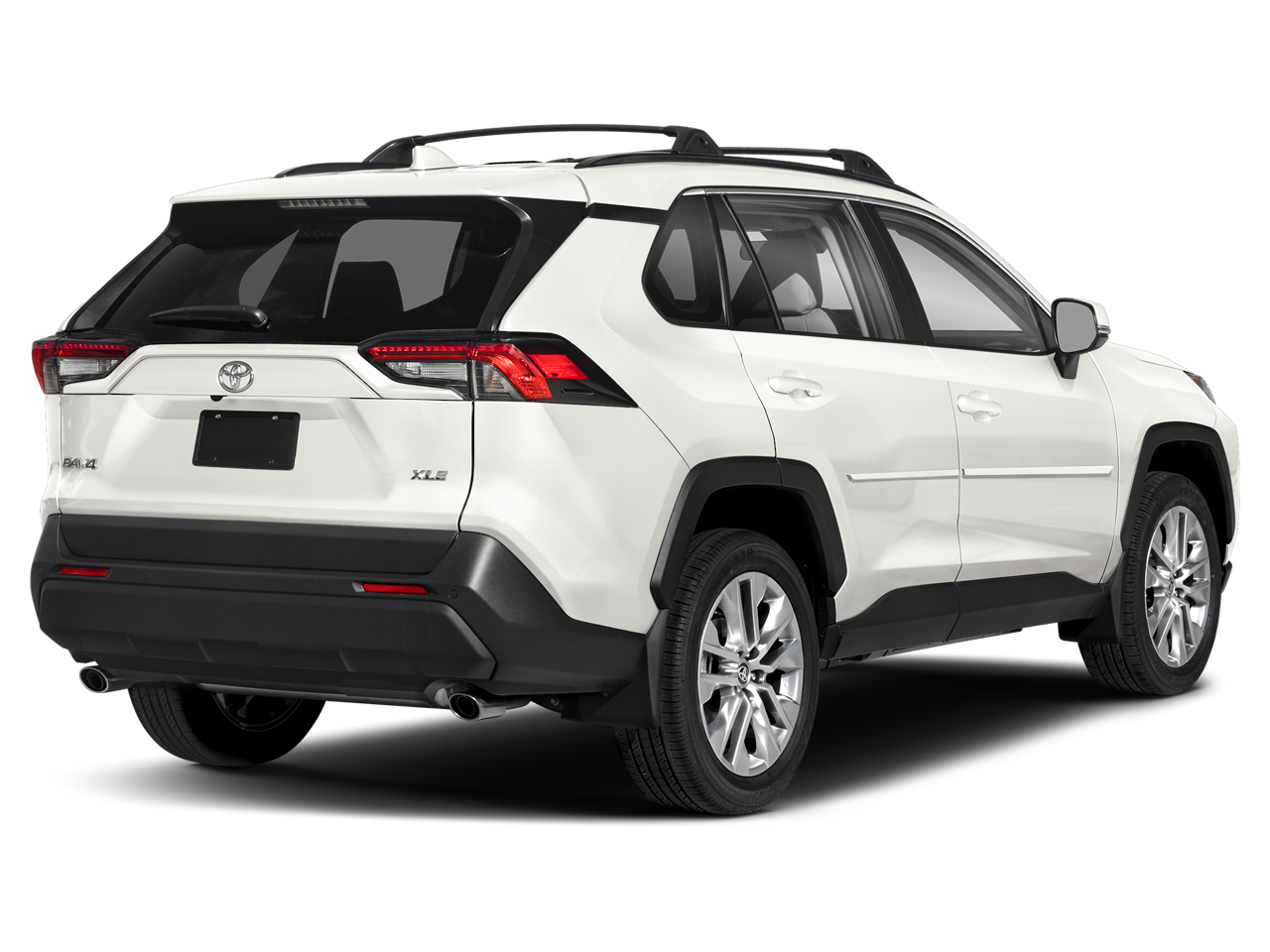

• Vehicle Name: Toyota RAV4
• Body Style: Sport Utility
• Emissions
• EPA Greenhouse Gas Score: 6.0
• Tons/yr of CO2 Emissions @ 15K mi/year: 5.9
